一、性能介绍Features：

可同时用于LDI、LED、普通卤素光源固化，具有很高的解析度、优异的附着力、抗酸/碱性蚀刻性能，且易于追查瑕疵部分。

Used in LDI, LED and common halogen light source curing, high resolution, excellent adhesion, Acid / alkaline etching resistance, and easiness to track defective parts of product.

技术资讯Specification:

产品名称

Product name

项目Items

HT-20 LD333

颜色
 Color

变色
 Change color

粘度

Viscosity

25℃,粘度计/Brookfield Viscometer DV2T

10±2dPa.s

固含量

Solid content

50%-55%

开罐后使用期限
 Pot life after mixing

24小时（25℃以下暗处保存）)

24hours (Store in dark place below 25℃)

保存期限
 Shelf life

制造后6个月
 6 months after production

附着力

Adhesion

100/100

铅笔硬度

Hardness

2H

流速控制
 Flow speed control

90-120sec

解析度
 Resolution

S/L=2mil/2mil

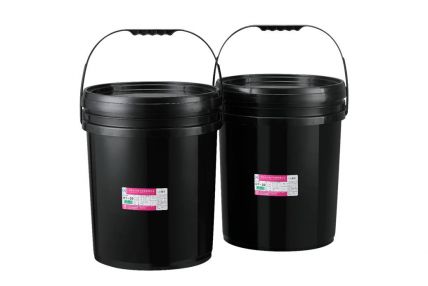

包装
 Potting

20kg/桶
 20kg/ pot

操作程序Process recommendations:


产品名称

Product name
 项目Items

HT-20 LD333

注意事项

Notes

开油

Mixing

开盖后加入开油水手动搅拌3-5min,然后静置5-10min加入涂布机使用即可

After opening the cover, add the diluent and manually stir 3-5min,  and hold 5-10min,then add into the coating machine


前处理

Pre-treat

磨刷→除油→微蚀→酸洗→水洗→烘干

微蚀速率：40-60μin          Micro corrosion rate: 40-60 μin

酸洗H2SO4浓度：3%-5%     H2SO4concentration: 3%- 5%

Brushing→Remove oil→Micro etching →Acid washing→Rinsin→

Drying

磨痕测试：12-18mm
 水破测试：≧30s

The grind mark test: 12 to 18 mm
 The water break test: ≧ 30 s

涂布

Coating

辊涂生产速度约4.5-5.0m/min

Roller coating production speed 4.5-5.0m/min

1.涂布轮：420目

2.膜厚控制:12-15μm

1.Coating wheel: 420 mesh

2.Film thickness：12-15μm

预烤

Pre-baking

80-85-90-90-70℃    9-10min

预烤后24小时内完成曝光和显影

Exposure and development within 24 hours after  pre-baking

曝光

Exposure

1.LDI激光的波长：405nm

2.LDI 曝光机，25-35mj/ cm2,7-9级

3.激光扫描时间：10-14秒（扫描时间的长短取决于PCB板的大小）

1.LDI Wavelength of laser: 405nm

2.LDI Exposure machine，25-35mj/ cm2,7-9Steps

3.Laser scanning time：10-14sec（The length of the  scanning time depends on the size of the PCB board）

曝光后有明显变色

Obvious discoloration after exposure

显影

Developing

Na2CO3浓度：0.8-1.2%        Na2CO3 concentration: 0.8 -1.2%
 温度：28-32℃                Temperature:28-32 ℃
 喷淋压力：0.5-1.2kg/cm2           Spray pressure: 0.5-1.2 kg/cm2
 时间：40-60sec               Time: 40 to 60 sec


 显影点控制：50-60%
 Developing point control: 50-60%

蚀刻

Etching

酸性

Acid

一般为酸性氯化铜溶液          General :Cucl2
 温度：48-52℃                Temperature:48-52 ℃
 喷淋压力：1.5-2.5kg/cm2           Spray pressure: 1.5-2.5 kg/cm2
 时间40-50sec                 Time of 40-50 sec

A.蚀刻因子：>2
 B.蚀刻均匀性：COV≥85%

A. Etch factor: > 2
 B. Etching uniformity: COV≥85%

碱性

alkali

一般为碱性氯化铜溶液          General :Cucl2

温度：48-52℃                Temperature:48-52 ℃
 喷淋压力：1.5-2.5kg/cm2           Spray pressure: 1.5-2.5 kg/cm2
 时间40-50sec                 Time of 40-50 sec

剥膜

Stripping

NaOH：5-8%                 NaOH: 5-8%
 温度：50-55℃                Temperature: 50-55℃
 喷淋压力：1.5-2.5kg/cm2          Spray pressure: 1.5-2.5 kg/cm2
 时间：50～80sec              Time: 50 ~ 80sec


注明：以上为建议参数，现场使用时请根据自身工艺设备的实际情况进行调整。

Note: the above is the recommended parameters, on-site use, according to the actual situation of their own equipment to adjust.
