颜色
 Color

乳白色

Milky white

粘度（主剂）
 Viscosity(main agent)

25℃,粘度计/Viscometer VT-06

450～750 dPa.s(20～25℃)

比重
 Specific gravity

1.5-1.8g/cm³

CTE

α

≤45ppm

β

≤140ppm

烘烤参数
 Curing condition

TH<1.0mm

150℃×60min

1.0mm≤TH＜3.0mm

95℃×10min+110℃×30min+ 150℃×50min

TH≥3.0mm

90℃×30min+110℃×30min+150℃×30min

保存期限
 Shelf life

90天（0-5℃以下储藏）
 90days(storage in 0-5℃)

附着力
 Adhesion

100/100

铅笔硬度
 Hardness

6H

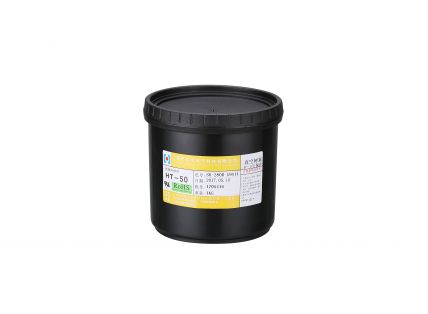

包装
 Potting

1kg/桶
 1kg/ pot

解冻

Cooling

常温条件下放置6小时

Place 6 hours at room temperature

4-6小时

4-6hours

搅拌

Mixing

不搅拌或真空搅拌

Use as it is or after vacuum stirring

30-45min.

印刷条件

Printing condition

网塞，铝片或真空机塞

Mesh plug, aluminium sheet or vacuum machine

刮刀

Squeegee

硬度 Hardness

70N

厚度 Thickness

20mm

角度 Angle

5-10度

5-10degree

压力 Pressure

5-10Mpa

速度 Speed

20-100mm/s

硬化条件Curing condition

TH<1.0mm

150℃×60min

1.0mm≤TH＜3.0mm

95℃×10min+110℃×30min+ 150℃×50min

TH≥3.0mm

90℃×30min+110℃×30min+150℃×30min

整平 leveling

内层，次外层板 inner layer, outer layer

打磨 Polish

1-3次   1-3times

注意事项：
 a. 建议在温度为20-25度，湿度50-60%RH的无尘环境内操作。
 b. 因每间工厂的烘干设备，生产条件和品质要求各有不同，烘干温度及时间也有所不同，请进行实验，测试后方可生产。
 c. 如果发现油墨变粘或无法搅拌时，表明油墨已经过期或因储存不当而变质，应立即进行油墨的更换。

Notes:
 A. Recommended in the temperature of 20-25  degrees, humidity 50-60%RH clean environment operation
 B. Because each factory's drying equipment, production  conditions and quality requirements are different, drying temperature and  time are also different, please do the experiment, after the test can be  produced.

C.  if the ink becomes sticky or unable to stir, indicates that the ink has expired  or because of improper storage and deterioration, should be immediately  replaced by ink.
