1.产品介绍（Product introduction）：

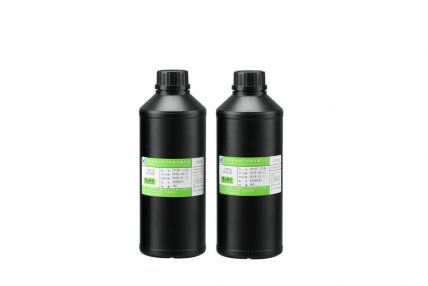

HT-50 LW11是一款无毒、高遮盖白色喷墨打印字符油墨。此产品主要针对喷墨打印在半固化和全固化阻焊油墨表面，可使用UV-LED光源固化。产品特点：

HT-50 LW11 is a non-toxic, high covered white ink jet printing character ink. This product is mainly for inkjet printing on semi curing and full curing solder resist surface. It can be solidified by UV-LED light source. Product features:

高遮盖白墨耐黄变；

High shade of white ink resistant to yellowing;

打印流畅性好，对喷头稳定性好；

Good printing fluency and good stability to the nozzle;

使用UV-LED（395nm）灯快速固化；

Fast curing with UV-LED (395nm) lamp;

不含卤素；

No halogen;

不含挥发性有机物；

No VOCs;

具有耐酸碱、耐溶剂、高硬度、耐热性等特性。

It has the characteristics of acid and alkali resistance, solvent resistance, high hardness and heat resistance.

2.油墨特性(Ink characteristics)

     颜色：亮白色。

Color: bright white.

粘度：打印粘度11-14 mPa·s。

Viscosity: printing viscosity 11-14 mPa·s.

储存条件：冷藏储存3个月。

Storage conditions: refrigerated storage for 3 months.

3.打印条件(Printing condition):

适用喷头：Konica Minolta 1024 及 1024i 系列喷头。

Applicable sprinklers: Konica Minolta 1024 and 1024i series sprinklers.

使用UV：395nm UV-LED。

Use UV: 395nm UV-LED.

打印粘度：11-14 mPa· s。

Print viscosity: 11-14 mPa· s.

打印喷头温度：范围在40-46℃之间。

Print head temperature: range between 40-46 ℃.

打印模式：可用于二元和灰度打印，单程与多程打印。

Printing mode: it can be used for two yuan and grayscale printing, one way and multi pass printing.

注意事项：具体打印参数取决于选择基材与分辨率等因素。

Note: the specific printing parameters depend on the choice of substrate and resolution.

4.固化条件(Curing condition):

光固化：LW10A打印字符油墨可以使用UV-LED或者汞灯进行光固化：使用的UV-LED灯在395nm下进行固化。2.8W/cm²的395nm UV-LED灯单程10m/min速度进行刮20μm墨层。

UV curing: LW10A printing character ink can be cured by UV-LED or mercury lamp: the UV-LED lamp is solidified under 395nm. 2.8 W/cm² 395nm UV-LED lamp one-way 10m/min speed to scrape 20 μm ink layer.

热固化：150℃*30-60分钟。

Heat curing: 150 ℃ *30-60 minutes.

5.检测项目(Test Items）：

附着力测试：根据ISO2409采用割10*10百格+胶带进行测试。

Adhesion test: according to the ISO2409, 10*10 .

硬度测试：根据ASTM D3363-05标准进行测试。

Hardness test: according to the ASTM D3363-05 standard.

耐酸碱测试：10VOL.%硫酸：10WT.%氢氧化钠；室温30min胶带测试，无掉漆。

Acid and alkali resistance test: 10VOL.% H₂SO₄（aq）, 10WT.% NaOH(aq); room temperature 30min tape test, no paint.

耐溶剂测试：PGMA（丙二醇甲醚乙酸酯）；室温30min胶带测试，无掉漆。

Solvent resistance test: PGMA (propylene glycol methyl ether acetate); room temperature 30min tape test, no paint.

耐焊锡性测试：锡焊温度280℃/10s免洗型助焊剂循环3次,外观无起泡现象。

Solder resistance test: tin solder temperature 280 ℃ /10s free solder circulation 3 times, the appearance of no bubble phenomenon.

耐黄变性测试：回流焊270℃/60s循环3次，不黄变。

Yellowing resistance test: reflow 270 times /60s cycle 3 times, no yellowing.

* 附着力受基板表面和光洁度影响。

* Adhesion is influenced by surface and smoothness of the substrate.

6.注意事项(Matters of attention):

在使用前，请注意安全，仔细阅读说明书并正确使用。

Please pay attention to safety before using, read the instructions carefully and use them correctly.

使用前，请戴上手套，避免油墨接触皮肤。

Please wear gloves before using, so as to prevent ink from touching the skin.

使用此产品请注意作业场所防止紫外光照射。

Please use this product to prevent UV radiation in the workplace.

未用完之产品请做好储存。

Please make good storage for unused products.
